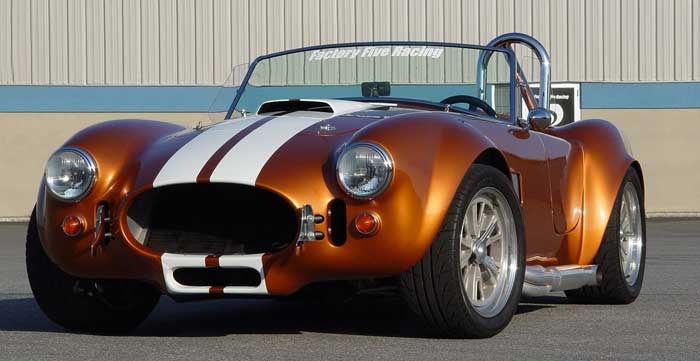

This is the set up we used on our display cobra (Rear Wheels) |
Stainless Steel Hose set with 3/16 ends |
|
|
STAINLESS STEEL HOSE KIT (for t-bird rear end with (IRS)
|
Back to Top |
| Item Description |
|
Price |
|
|
NEW S/S HOSE KIT |
Price$79.95 REAR WHEELS IRS T-BIRD
|
|
|
Ford T-bird rear end with (IRS) brake S/S hose kit) with two ss hose brackets (two hoses 22 inch over all length with 3/16 ends) two stainless steel Rear brake hoses (Rear Wheels) |
Stainless Steel Hose set |
|
|
STAINLESS STEEL HOSE KIT (for t-bird rear end with (IRS)
|
Back to Top |
| Item Description |
|
Price |
|
|
|
NEW S/S HOSE KIT |
Price$69.95 REAR WHEELS IRS T-BIRD
|
|
|
|
Ford T-bird rear end with (IRS) brake S/S hose kit) with 3/16 ends (two hoses 22 inch over all length) two stainless steel Rear brake hoses (Rear Wheels) |
Stainless Steel Hose set |
|
|
STAINLESS STEEL FRONT HOSE KIT (note'for 1987-93 with 10 1/2 inch Rotors 60MM bore calipers)
|
Back to Top |
| Item Description |
|
Price |
|
|
|
NEW S/S HOSE KIT |
Price$69.95 FRONT WHEELS
|
|
|
1987-93 (note'for 1987-93 with 10 1/2 inch rotors) (60MM bore calipers Front brake hose kit)with 3/16 ends two stainless steel Front brake hoses (Front Wheels) |
Stainless Steel Hose set |
|
|
STAINLESS STEEL FRONT HOSE KIT (note'for 1987-93 with High heat ends for Spec Racer with 10 1/2 inch Rotors 60MM bore calipers)
|
Back to Top |
| Item Description |
|
Price |
|
|
|
NEW S/S HOSE KIT |
Price$69.95 FRONT WHEELS
|
|
|
|
1987-93 with High heat ends for Spec Racer if you are racing then your calipers can run up to 900 degrees this can cause the brake line to fail so we have made up a line with a high temp end (note'for 1987-93 with 10 1/2 inch rotors) (60MM bore calipers Front brake hose kit)with 3/16 ends two stainless steel Front brake hoses (Front Wheels) |
Stainless Steel Hose set |
|
|
STAINLESS STEEL HOSE KIT (note'for 1987-97 with 11 inch GT rotors)
|
Back to Top |
| Item Description |
|
Price |
|
|
|
NEW S/S HOSE KIT |
Price$69.95 FRONT WHEELS
|
|
|
|
1987-93 (note'for 1987-97 with 11 inch rotors) (GT Front brake hose kit)with 3/16 ends two stainless steel Front brake hoses (Front Wheels) |
Stainless Steel Hose set |
|
|
STAINLESS STEEL HOSE KIT (note'for 1987-97 with 11 inch GT rotors)
|
Back to Top |
| Item Description |
|
Price |
|
|
|
NEW S/S HOSE KIT |
Price$89.95 FRONT AND REAR WHEELS
|
|
|
|
1987-93 (note'for 1987-97 with 11 inch rotors) (GT Front and Rear brake hose kit) two stainless steel Front brake hoses and one Rear Hose with 3/16 ends (Front and Rear Wheels) |
Stainless Steel Hose set |
|
|
STAINLESS STEEL HOSE KIT (note'for 1987-2004 with 13 inch cobra rotors)
|
Back to Top |
| Item Description |
|
Price |
|
|
|
NEW S/S HOSE KIT |
Price$89.95 FRONT AND REAR WHEELS
|
|
|
|
1987-93 (note'for 1987-2004 with 13 inch cobra rotors) (GT Front and Rear brake hose kit) two stainless steel Front brake hoses with 3/16 ends and one Rear Hose (Front and Rear Wheels) |
Stainless Steel Hose set |
|
|
1987-2004 (Mustang Front with Cobra Calipers and 13 inch rotors (Front Wheels) |
Back to Top |
| Item Description |
|
Price |
|
|
|
NEW S/S HOSE KIT |
Price$69.95
|
|
|
|
Factory Five Cobra Front with Cobra Calipers and 13 inch rotors,(:note both car body ends are 3/16 ends) brake hose kit) two stainless steel Front brake hoses (Front Wheels) |
Stainless Steel Hose set |
$69.95
|
|
Ford 1987-93 mustang for 1999-2004 GT Calipers (brake hose kit) 3010 FF/GT with both ends 3/16 (Front Wheels) |
Back to Top |
| Item Description |
|
Price |
|
|
|
NEW S/S HOSE KIT |
Price$69.95
|
|
|
|
Ford 1987-93 mustang for 1999-2004 GT Calipers (brake hose kit) 3010 FF/GT with both ends 3/16 ends two stainless steel Front brake hoses (Front Wheels) |
Stainless Steel Hose set |
$69.95
|
|
1987-1998 and 1999-2003 Mustang 8.8 rear ends (Special length for Factory Five Cobras 12 inch) (Rear end Center brake hose)one Rear Hose (Rear Wheels) |
Back to Top |
| Item Description |
|
Price |
|
|
|
NEW S/S HOSE and Banjo bolt |
Price$24.95 REAR WHEELS
|
|
|
|
1987-1998 and 1999-2003 Mustang 8.8 rear ends (Special length for Factory Five Cobras 12 inch) (Rear end Center brake hose) one stainless steel Rear Hose and banjo bolt with washers (Rear Wheels) |
Stainless Steel Rear end Center Hose |
|
|

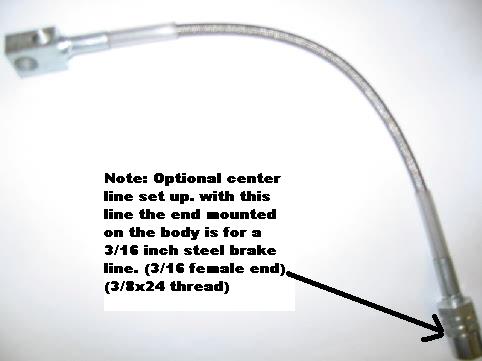

OPTIONAL FACTORY FIVE S/S CENTER BRAKE LINE WITH 3/16 INCH END (3/8X24 END) (Special length for Factory Five Cobras 12 inch)(Special length for Factory Five Cobras 12 inch)(Rear end Center brake hose) (Rear Wheels) |
Back to Top |
| Item Description |
|
Price |
|
|
|
NEW S/S HOSE and Banjo bolt |
Price$24.95 REAR WHEELS
|
|
|
|
OPTIONAL FACTORY FIVE S/S CENTER BRAKE LINE WITH 3/16 INCH END (3/8X24 END) (Special length for Factory Five Cobras 12 inch) (Rear end Center brake hose) one stainless steel Rear Hose (Rear Wheels) |
Stainless Steel Rear end Center Hose |
|
|
BRAKE LINE CLIPS FOR S/S HOSE AND RUBBER HOSE
|
Back to Top |
| Item Description |
|
Price |
|
|
|
Price$3.95
|
|
|
BRAKE LINE CLIPS FOR S/S HOSE AND RUBBER HOSE |
4 CLIPS |
|
|
BRAKE LINE CLIPS FOR S/S HOSE AND RUBBER HOSE
|
Back to Top |
| Item Description |
|
Price |
|
|
|
|
Price$29.95
|
|
|
|
FOR THE PROFESSIONAL BUILDER (BUY IN BULK) |
100 CLIPS |
|
|

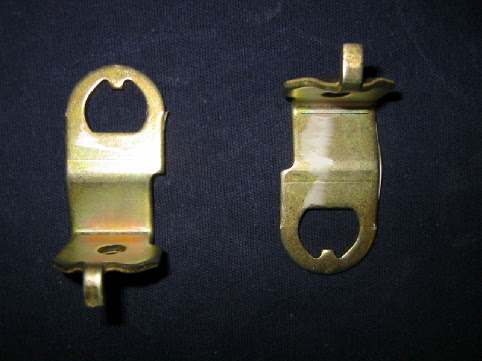

BRAKE HOSE BRACKETS FROM FORD WITH ANTI ROTATION HOLE AND FOR FRONT OR REAR
|
Back to Top |
| Item Description |
|
Price |
|
|
|
|
Price$24.95
|
|
|
|
BRAKE HOSE BRACKETS FROM FORD WITH ANTI ROTATION HOLE AND FOR FRONT OR REAR |
FOR FRONT OR REAR |
|
|
BRAKE HOSE BRACKETS FOR S/S HOSE WITH 5/8 INCH HOLE FOR FRONT OR REAR
|
Back to Top |
| Item Description |
|
Price |
|
|
|
|
Price$24.95
|
|
|
|
BRAKE HOSE BRACKETS FOR S/S HOSE WITH 5/8 INCH HOLE |
WITH 4 S/S POP RIVETS |
|
|
BRAKE HOSE BRACKETS FOR S/S HOSE WITH ANTI ROTATION TAB FOR FRONT OR REAR
|
Back to Top |
| Item Description |
|
Price |
|
|
|
|
Price$24.95
|
|
|
|
BRAKE HOSE BRACKETS FOR S/S HOSE WITH ANTI ROTATION TAB |
WITH 4 S/S POP RIVETS |
|
|
|
|
Back to Top |
| Item Description |
|
Price |
|
|
NOTE;1-3/16 FEMALE-T AND 3-3/16 TUBING FITTINGS
|
BRAKE FITTINGS FOR 3/16 TUBING, THREAD SIZE 3/8X24 |
Price$9.95
|
|
|
ADAPTER FITTING |
ADAPTER FITTING 1-3/16 FEMALE-T AND 3-3/16 TUBING FITTINGS |
|
|
|
|
Back to Top |
| Item Description |
|
Price |
|
|
NOTE; 3/16 MALE IS 3/8X24 THREAD AND 1/4 FEMALE IS 7/16X24 THREAD
|
BRAKE FITTING 7/16 FEMALE TO 3/16 MALE |
Price$5.95
|
|
|
|
ADAPTER FITTING |
ADAPTER FITTING 7/16 (1/4) INCH FEMALE TO 3/16 INCH MALE |
|
|
|
|
Back to Top |
| Item Description |
|
Price |
|
|
NOTE; 3/16 X 3/16 TUBE NUT
|
BRAKE FITTING 3/16 X 3/16 |
Price$1.95
|
|
|
|
TUBING NUT FITTING |
FITTING 3/16 X 3/16 TUBE NUT |
|
|
|
|
Back to Top |
| Item Description |
|
Price |
|
|
NOTE; 3/16 X 7/16 TUBE NUT
|
BRAKE FITTING 3/16 X 7/16 |
Price$2.95
|
|
|
|
TUBING NUT FITTING |
FITTING 3/16 X 7/16 TUBE NUT |
|
|
|
|
Back to Top |
| Item Description |
|
Price |
|
|
NOTE; FITTING 3/16 X 12MM x1.0 and 3/16 x 10MMX1.0 for Aluminum Master Cylinder |
|
Price$10.95 for two fittings
|
|
|
FITTING 3/16 X 12MM x1.0 and 3/16 x 10MMX1.0 to convert Bubble Female in master Cylinder to Double Flair for steel lines for Aluminum Master Cylinder |
if you have a Cobra Aluminum Master Cylinder then you need these fittings to put your steel lines in the master Cylinder |
|
|
|
|
Back to Top |
| Item Description |
|
Price |
|
|
NOTE; FITTING 3/16 X 12MM x1.0 for Aluminum Master Cylinder |
BRAKE FITTING 3/16 X 7/16 |
Price$5.95
|
|
|
|
FITTING 3/16 X 12MM x1.0 to convert Bubble Female in master Cylinder to Double Flair for steel lines for Aluminum Master Cylinder |
FITTING 3/16 X 12MM x1.0 for Aluminum Master Cylinder |
|
|
|
|
Back to Top |
| Item Description |
|
Price |
|
|
NOTE; Bubble Fitting 3/16 X 3/16 for Aluminum Cobra Master Cylinder |
BRAKE FITTING 3/16 X 3/16 |
Price$5.95
|
|
|
|
FITTING 3/16 X 3/16 to convert Bubble Female in master to Double Flair for steel lines that go into the Aluminum Master Cylinder |
FITTING 3/16 X 3/16 with bubble end for Cobra Aluminum Master Cylinder |
|
|
|
|
Back to Top |
| Item Description |
|
Price |
|
|
NOTE; 3/16 FEMALE IS 3/16 THREAD AND 3/16 THREAD
|
BRAKE FITTING 7/16 FEMALE TO 3/16 MALE |
Price$5.95
|
|
|
|
ADAPTER FITTING 3/16 X 3/16 CONNECTOR FEMALE |
ADAPTER FITTING 3/16 X 3/16 CONNECTOR FEMALE |
|
|
|
|
Back to Top |
| Item Description |
|
Price |
|
|
|
|
Price$12.86
|
|
|
|
FITTING 3/16 Bubble male flair X 3/16 inverted male flair |
|
|
|
|
|
Back to Top |
| Item Description |
|
Price |
Order |
|
A residual pressure valve is used when a master cylinder is mounted equal to or below the horizontal plane of the calipers or drum brake wheel cylinders. |
Install the valve as close as possible to the master cylinder and position the end marked M.C. toward the master cylinder and the end marked out toward the brakes |
$19.95
|
1/8-27 NPT INLET AND OUT LET |
2-Lb Valve
|
|
|
BANJO BOLT KIT COBRA 2003-2004 FOR FRONT CALIPERS
|
Back to Top |
| Item Description |
|
Price |
Order |
|
NOTE:BANJO BOLTS ARE SOLD IN SETS OF 2 ONLY |
FORD ORIGINAL EQUIPMENT BANJO BOLTS AND WASHERS |
TWO FRONT 10 MM X 1.5 BOLTS AND 4 WASHERS
|
|
|
FORD BANJO BOLT KIT COBRA 2003-2004 FOR FRONT CALIPERS AND 4 HEAT TREATED WASHERS (Set OF TWO) (BOLT KIT) FRONT WHEELS |
Torque spec 25 inch LB
|
$14.95
|
|
BANJO BOLT KIT 1994-02 COBRA AND 1999-04 GT FRONT AND REAR
|
Back to Top |
| Item Description |
|
Price |
Order |
|
NOTE:BANJO BOLTS ARE SOLD IN SETS OF 4 ONLY |
FORD ORIGINAL EQUIPMENT BANJO BOLTS AND WASHERS |
TWO FRONT 10 MM X 1 BOLTS AND TWO REAR 10 MM X 1.5 BOLTS AND 8 WASHERS
$12.95
|
|
|
FORD COBRA 1994-02 AND GT 1999-04 BANJO BOLT KIT TWO FRONT BOLTS AND TWO REAR BOLTS AND 8 HEAT TREATED WASHERS (Set OF FOUR) (BOLT KIT) FRONT AND REAR WHEELS |
Torque spec 25 inch LB
|
$24.95
|
|
BANJO BOLT KIT 1994-02 COBRA AND 1999-04 GT FRONT WHEEL
|
Back to Top |
| Item Description |
|
Price |
Order |
|
NOTE:BANJO BOLTS ARE SOLD IN SETS OF 2 ONLY |
FORD ORIGINAL EQUIPMENT BANJO BOLTS AND WASHERS |
TWO FRONT 10 MM X 1 BOLTS AND 4 WASHERS
|
|
|
FORD COBRA 1994-02 AND GT 1999-04 BANJO BOLT KIT TWO FRONT BOLTS 4 HEAT TREATED WASHERS 10x1 (Set OF TWO) (BOLT KIT) FRONT WHEELS |
Torque spec 25 inch LB
|
$16.95
|
|
BANJO BOLT KIT 1994-04 COBRA AND 1999-04 GT REAR WHEEL
|
Back to Top |
| Item Description |
|
Price |
Order |
|
NOTE:BANJO BOLTS ARE SOLD IN SETS OF 2 ONLY |
FORD ORIGINAL EQUIPMENT BANJO BOLTS AND WASHERS |
TWO REAR 10 MM X 1.5 BOLTS AND 4 WASHERS
|
|
|
|
FORD COBRA 1994-04 AND GT 1999-04 BANJO BOLT KIT 4 HEAT TREATED WASHERS (Set of two banjo bolts) REAR WHEELS |
Torque spec 25 inch LB
|
$14.95
|
|
|
|
|
|
